Like Duz (do they still make Duz?), computers are getting a reputation for being able to do about everything. It is well earned, for to understand computers is to love them ... they are being billed as the World's Greatest Toy, and this is not much an exaggeration, young long-haired blonds notwithstanding.  More and more amateurs are tackling the new inexpensive computer kits and coming up with very usable results. Some are using the units to aim their antennas for moon-bounce, some to predict or even aim antennas at Oscar, some to operate a virtually automatic RTTY station, some to run a repeater or even a system of repeaters ... and so forth.

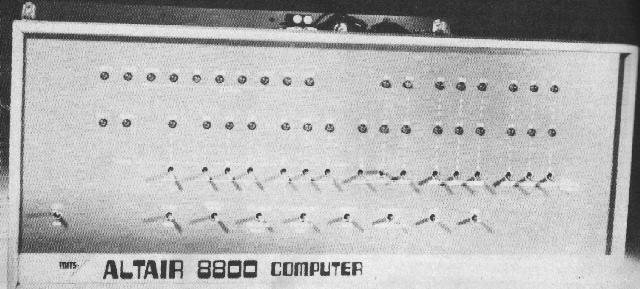

The Altair 8800 ...

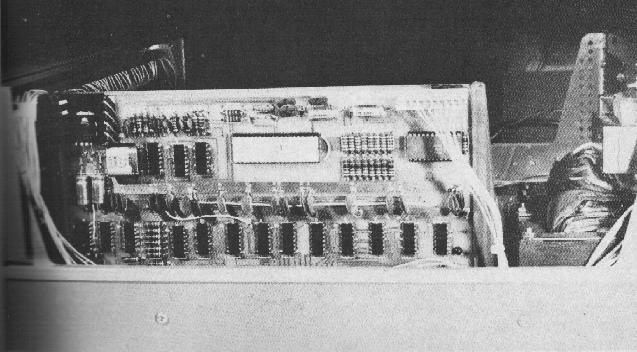

and a look inside.

The Three Basics
There are three parts to a computer system ... the central processing unit, cleverly called a CPU, the gadget which costs the most money and which does most of the work ... an input/ouput device such as a teletype ... and some sort of memory for the CPU to keep things on file when it is not actively working with them.
IC technology has been raising havoc with CPU prices, dropping them in large increments every few months. The latest chips such as the Intel 8008, 8080, National PACE, IMP-16, and Motorola M6800 have spawned a breed of miniature CPU which is so low in cost that it has made the hobby computer a practicality. The first large quantity production of CPU's using the new series of microprocessor chips was put out by MITS in January 1975 ... Their Altair 8800.
This sold for $439 in kit form and $621 assembled and tested ... about one tenth the price of previously available minicomputer units.
RGS Electronics and Scelbi Computer System had been producing computer kits before this using the Intel 8008 chip, but these were not as well publicized and the 8008 chip has more limitations than the 8080, which is used in the Altair.
More and more CPU kits are becoming available ... such as the recently announced Godbout system using the National PACE chip ... this holds a lot of promise for a lot of computer at a ridiculously low price.
Another new one is Sphere, available in kit or assembled form in the same basic price range of $500-$600 with enough built-in memory to do some work.
There are two basic forms of memory required ... one in CPU to permit it to do work ... and one outside for longer term use. The internal memory stores operating program instructions and things retrieved from the larger memory which have to be used by the CPU. Practically speaking, the larger the internal memory of the CPU, the faster your computer system can operate. For instance, if you had a record of all the stations you've ever contacted in the main memory and you wanted to sort through for one particular call, it would be easier to find if your CPU could grab a thousand stations out at one time and check them against the call you need instead of checking maybe ten at a time. You'd find the record you want one hundred time faster.
But, alas, memory cost money, and a happy medium as to be struck between what you want and what you can afford. You can get along with 4K of memory ... That's actually 4096 bytes, where a byte is 8 bits of memory, the amount needed to represent a letter or number. Memory costs about 4 cents per byte (1975), but it will be coming down.
Long term memory units have been coming down in price too, though it is still possible to buy a brand new Ampex 40 megabyte disk system for $24,000 if you like to pay this price and get into that sort of scene. More in the amateur end are some of the soon to be seen floppy disk systems which will be selling in the $500 range and which will provide about 250K of memory on each disk. The disks are a lot like phonograph records and can be changed quickly.
One of the simplest and the least expensive memory systems involves the audio cassette recorder, and many hobbyists seem to be working in this direction. It is a little slow, but it is extremely cheap and you can have a lot of memory that way. The standard for using them is a familiar one, with the two RTTY audio frequency shift tones being used.

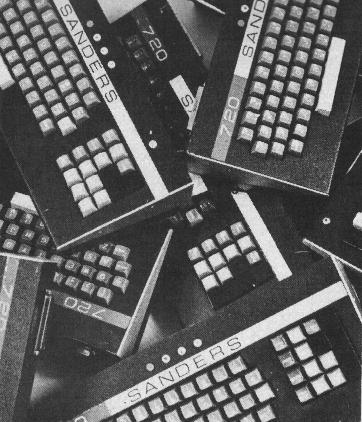

Keyboards from Sanders: Running rampant.

Even the input/output situation is changing rapidly. Of course you can buy an old teletype machine for $50 to $100 and it will work quite well. You might even want to go to a faster and more modern machine, if you can promote one at less than the price of a good used car. The more usual system now is to put together a video display terminal and work from that. These are available in kit form for around $150 to $250 and are a cinch to put together. The Southwest Technical video display generator costs $175 in kit form and it can be put together by a twelve year old. The keyboard that goes with this one runs another $40 and works like a champ. Or you may want to shop around for a surplus keyboard for the same or a slightly lower price ... Most of them have ASCII output and this is all you need to hook things together for a working system.

For complete information package including 24 pages catalog, technical data, price list and sample Altair User Group newspaper send $2.00 to: Altair Package, MITS, 6328 Linn NE, Albuquerque, New Mexico 87108.

Uses  Once you have your CPU, memory I/O up and working, you then have to decide what you want to do with the system. You may want to use it to keep track of stations you've worked, with little bits of information about them for recall on the video screen (any television set will provide the video part of the terminal for you). You may want to catalogue your record collection of your book library ... Or perhaps articles in the ham magazines. If you are into RTTY you realize that your computer system is the main part of the RTTY station. You can program it to send a 60 words per minute, either from the keyboard or from any material you have in the memory ... and receive the same way, printing it out (and memorizing the stuff, if you want) on your screen.  Perhaps you prefer CW ... so program the computer to convert the ASCII letters into appropriate CW characters ... select the speed you prefer ... and type away as fast as you like for several hundred words. Your computer can also decipher incoming CW for you and print it on the screen. There probably will be a good deal of 50 wpm CW around in the future as computer-assisted ops work each other. Your checkbook? No strain, many hobbyist are using their system for keeping their bank accounts in order.  If you have a small business of your own you may want to apply some of the computer power into it ... inventory ... account receivable ... mailing list ... things like that.

Programming
This is a bit sticky right now, but the situation is improving. One problem has been that there have been a whole lot of computer designed, but not all that many of anyone model ... so the programming work has had to be done over and over to match each new machine that has been developed. And as computers have gotten more and more complicated, programming has followed ... usually increasing about ten times in difficulty for each increased and complexity of the CPU. Thus, while CPU costs have been dropping rapidly, programming (software) costs have been going up by like amounts. This may improve as more and more identical computers are made available ... a benefit a mass production.
The problem with programming is that it takes forever to put instructions when you have to do it one single step at a time. The idea is to enable the computer to translate simple words and instructions into all of the ones and zeros which the machine requires to do its digital job. These simple yesses and nos are called machine language ... it is the only language the CPU will understand until you "teach" it (via a program) a more complicated set of instructions, thus enabling it to translate.
The manufacturers of most computers spend a lot of time and money working out the translations (programs) and they are usually reluctant to give these away. MITS has implemented BASIC and has it available for about $60 when you buy a 4K memory board. A number of small groups have formed to provide cooperative efforts on developing programming and many of the more popular computer systems have user groups who swap programs.

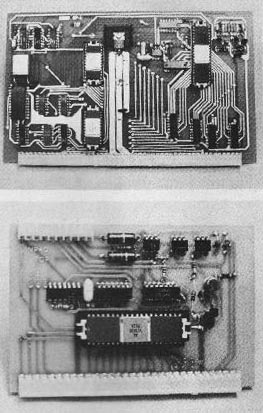

CPU and Serial Interface boards from South-West Tech.

Learning about computers An unfortunate number of the books which have been published with the purported aim of helping you to learn about computers are just plain terrible. The fact is that the rank newcomer to computers is in for a very difficult time. The magazines (which the exception of BYTE, which sort of resulted from this situation) are written for professionals and have little of interest or value to a beginner. Little is written for the experimenter, the circuit designer, or the programmer ... with most magazines being devoted to the business end of the computer field.  73 author Pete Stark has written an interesting introduction to computer programming which is scheduled to be reprinted by Tab Books ... watch for an announcement of that one. The Lancaster TTL Cookbook is fine for hardware fans ... published by Sams at $8.95.

Adding two plus two
The basic CPU usually comes with a set of switches, one for each of the eight bits which make up each bite of information (each character). One set of LED lights indicates which memory location is open for use and the other set indicates what is in the memory at the time. To machine program such a CPU you flip the "examine" switch and the lights will then indicate what is in the first memory position. You set the switches according to the instructions that tell the CPU what you want it to do. Let's say you want to do something very simple at first like add two numbers. Here's how you'd go about it.
There are eight bits to be put in each memory bin. To save a lot of writing and work these are abbreviated. Written out they would look like this:

If you've read about binary numbers you know that 000 = 0, 001 = 1, 010 = 2, 011 = 3, 100 = 4, 101 = 5, 110 = 6, 111 = 7. Thus using this notation a binary number such as 01 011 111 would be written 137.
Got it? That's called octal notation (base 8).
The Intel 8080 chip and the Mits Altair 8800 as a bunch of instructions built into it when you get the unit. This tells you that, if you set the first memory to 072, this will instruct the CPU to pick up whatever number you have in a specific part of the memory and put it into a small memory unit called register A ... this is all done inside the 8080 chip. When we push the "deposit" switch this puts the 072 into the first memory position. Next we set up the switches for 200 ... this is the place where we will put the number we want to add. We push the "deposit next" switch and this puts the 200 into the second memory position. After consulting the instructions again we set up 107, which means move what we had in register A to register B. "Deposit next" takes care of that.
Now we pick up the second number ... the one we want to add to the first. 072 (deposit next) says move to register A the contents of what we say next ... 201 (deposit next). A 200 instruction tells the chip to add A to B. Then an 062 tells the chip to move that some to whatever location we say next ... we pick 202 and deposit that information. We end the operation by telling the chip to jump back to 000 again and wait for further instructions.

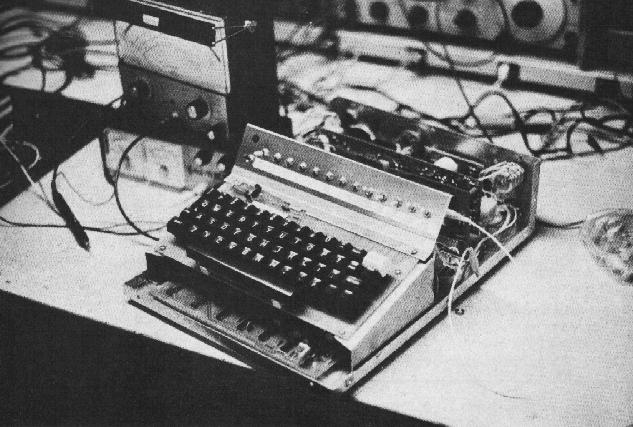

A typical test set-up - thorough - at SWT.

Perhaps you can see why machine language is a back breaker and why everyone wants to get programs which will enable them to merely type in something simple like: A = 300, B = 5.3, C = A x B, PRINT C, END, RUN. There are a great many computer languages ... something over 700 in current use ... but a few have come into more popular acceptance such as RPG, COBOL, BASIC, FORTRAN, and such. The most basic of instructions to the computer are usually put in by means of punched tape or by cassette ... such sample programs has assemblers, this is a lot faster than sitting there flicking bat switches for each of the eight bits to load a program into a couple thousand memory positions ... your fingers and patience would wear out. So would the switches after a while.
If you get into this field you'll find that most of the computer languages are relatively simple ... you just have to sit down for a few days and work with them until you get the hang of the things and learn to correct your mistakes ... and you'll make a lot of them. Programming is difficult only because it is exacting - a computer does not forgive errors, it just compounds them for you. It takes a lot of time and patience to beat new trails ... so it is fortunate that user groups are proliferating to provide exchanges of programs ... why keep on inventing the wheel, right?
I hope I haven't worried you about computers ... they are not very expensive these days (1975) ... are getting cheaper ... and are an enormous amount of fun to play with. Get cracking ... and as you conquer new territory, make a chart for the rest of us and send the information to 73 and BYTE.
